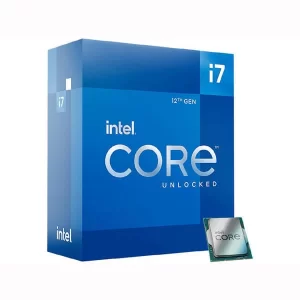

Intel Core i7-12700K Desktop Processor

31,499.00

Product Detail:

  • SeriesCore i7 (12th Gen)
  • CORES12 Cores
  • THREADS20 Threads
  • SocketLGA1700
  • SPEED2.7 GHz
  • SPEED (TURBO)5 GHz
  • CACHE25 MB
  • MAX MEMORY SUPPORT128 GB
  • INTEGRATED GRAPHICSIntel UHD Graphics 770
  • INCLUDED CPU COOLERNo
  • UNLOCKEDYes
  • TDP125W
  • WARRANTY*3 Years

Product Description:

Feature

  • Intel 7 Architecture enables improved performance per watt and micro architecture makes it power-efficient
  • The processor features Socket LGA-1700 socket for installation on the PCB
  • 25 MB of L3 cache to boost the instruction processing and system performance
  • Intel® Core® i7 3.60 GHz processor offers more cache space and the hyper-threading architecture delivers high performance for demanding applications with better onboard graphics and faster turbo boost
  • To boost graphics and visual quality, the chipset has a built in Intel UHD Graphics controller

Intel Core i7 12700K Processor

  • This Intel Core i7 12700K 12th Gen Desktop Processor is a powerful CPU that will be able to keep up with the demands of high-end gaming, 3D rendering, and video editing. This Intel Core i7 12700K is an ideal upgrade for your system, with its 12 cores and 20 threads, and 5.0GHz max turbo frequency. It has a 125W TDP and a 25MB Intel Smart Cache. It also has Intel HD Graphics 770 and the latest Intel Turbo Boost Technology 2.0.
  • Moreover, the Core i7 12700K 12th Gen processor is also equipped with Intel Hyper-Threading Technology that delivers extra performance for the most demanding applications. The Intel UHD Graphics 630 provides more realistic gaming and a smooth 4K Ultra HD experience. Along with it, the processor also supports the FCLGA1700 socket and also has an unlocked multiplier, and is cooled by a soldered IHS with a thermal interface material.
  • The CPU’s Turbo Boost technology will dynamically increase the processor’s frequency when the computer needs it most and can deliver up to a 25% performance increase. It is a desktop processor that is designed for gamers, workstations, and PC enthusiasts. Overall, this is the perfect processor for gaming enthusiasts who want a reliable CPU to power their high-end gaming computer.

FEATURES:

  • Hybrid Core Design –  Intel Core i7 12700K Processor has Background tasks are handled by the processor’s efficient cores for multitasking while performance cores provide speed for handling high-end games and demanding applications.
  • Intel Thread Director – Intel Core i7 12700K Processor has Intel Thread Director is built into the CPU’s core, working with the operating system to ensure that each of the 20 threads is assigned to the correct core at the right time.
  • PCI-E 4.0 and 5.0 – This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, providing a total of 20 lanes for exceptional data throughput with compatible devices.
  • Integrated graphics – Powered by Intel Xe architecture, integrated Intel UHD 770 graphics deliver fast, rich 3D performance for high-quality scenes, either on a single 7680 x 4320 resolution 8K monitor or four 3840 x 2160 resolution 4K displays with high-dynamic range with the support of.
  • Intel Deep Learning Boost – AI accelerates inference to improve the performance of deep learning workloads.
  • Gaussian and Neural Accelerator 3.0 – Gaussian and Neural Accelerator 3.0 (GNA) technology helps reduce noise while enhancing background blur during video chats.
Essentials
Product Collection 12th Generation Intel® Core™ i7 Processors
Code Name Products formerly Alder Lake
Vertical Segment Desktop
Processor Number i7-12700K
Status Launched
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 12
# of Performance-cores 8
# of Efficient-cores 4
Total Threads 20
Max Turbo Frequency 5.00 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency 5.00 GHz
Performance-core Max Turbo Frequency 4.90 GHz
Efficient-core Max Turbo Frequency 3.80 GHz
Performance-core Base Frequency 3.60 GHz
Efficient-core Base Frequency 2.70 GHz
Cache 25 MB Intel® Smart Cache
Total L2 Cache 12 MB
Processor Base Power 125 W
Maximum Turbo Power 190 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Processor Graphics
Processor Graphics Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.50 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0x4680
OpenCL* Support 2.1
Expansion Options
Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
  Security & Reliability
 Intel vPro® Eligibility ‡  Intel vPro® Enterprise
 Intel® Threat Detection Technology (TDT)  Yes
 Intel® Active Management Technology (AMT) ‡   Yes
 Intel® Standard Manageability (ISM) ‡   Yes
 Intel® One-Click Recovery ‡   Yes
 Intel® Hardware Shield Eligibility ‡   Yes
 Intel® Control-Flow Enforcement Technology   Yes
 Intel® Total Memory Encryption – Multi Key   Yes
 Intel® Total Memory Encryption   Yes
 Intel® AES New Instructions   Yes
 Secure Key   Yes
 Intel® OS Guard   Yes
 Intel® Trusted Execution Technology ‡   Yes
 Execute Disable Bit ‡   Yes
 Intel® Boot Guard   Yes
 Mode-based Execute Control (MBEC)   Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡  Yes
 Intel® Virtualization Technology (VT-x) ‡  Yes
 Intel® Virtualization Technology for Directed I/O (VT-d) ‡  Yes
 Intel® VT-x with Extended Page Tables (EPT) ‡  Yes
 Warranty  3 Years
Note *** Features, Price, Specifications are subject to change without notice.
